- Removes floating grease and heavy oil from water.
- Elevates skimmed grease up to 100 feet or more, for easy discharge into drums.
- Removes up to 160 gallons of grease per hour.
- Reduces fluid disposal costs.
- Helps meet government requirements for water discharge.
- Designed for the most demanding conditions.
- Corrosion-resistant materials.
- Customized belt lengths and materials.
- Belt and wiper materials unaffected by most greases and oils.
- Removable guards and other features make maintenance a breeze.
Grease Grabber® Belt Oil Skimmer

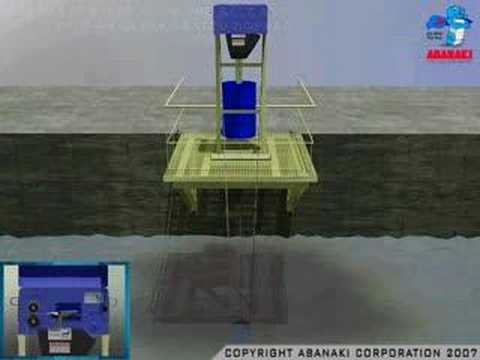

The Abanaki Grease Grabber is a dependable and effective means of skimming oil and floating grease from water, under the most demanding conditions. The Grease Grabber makes use of the differences in specific gravity and surface tension between oil and water. These physical characteristics allow the skimmer belt to attract grease, oil, and other hydrocarbon liquids as the belt passes through the surface of the water. The skimmer belt specifically selected for your application. Texture pinch rollers pull the belt over the idler pulley and through the angled wiper blades, where grease is removed before passing through the pinch rollers. The grease is rolled off into a heated hopper, which maintains fluidity for easy drainage through a 4″ ID discharge port. Belt tension is maintained by the weight of a free riding tail pulley. The tail pulley is tethered to the underside of the Grease Grabber to prevent accidental loss.
| Oil Removal Rate: | 160 gph (606 lph); Removal rate is based on Brooks Technology Plexelene 750™ grease in ordinary water. |
|---|---|
| Motor: | Fractional hp TEFC, 115/230 VAC, single phase, 60 Hz, gear motor |
| Heater: | Integral 2400 watt heater |
| Belt Material: | Specifically selected for your application |
| Belt Width: | 8 inches (20.3 cm) |
| Belt Length: | User specified (up to 100′, measured from the center of head pulley to center of tail pulley) |
| Wiper Material: | Ceramic UHMW hybrid standard (other materials available) |
| Mounting Method: | Flat surface mount is standard (boom mast mount optional) |
| Mounting Area: | Appx. 28″ X 9″ (71.12 cm X 22.86 cm) |
| Weight: | Complete drive unit without tail pulley or belt: Appx. 240 lbs. (109 kg). Two lifting hooks installed on drive unit. Tail pulley: 10 lbs (4.5 kg) |
| Options (Specify): | 304 Stainless Steel Housing Boom mast mounting Remote ON/OFF switch Tail pulley, belt cage and teather assembly for turbulent liquids Timers |
|
Operating Limits * |
Temperature: 125° F (52° C) with elastomer belt. 212° F (100° C) with corrosion-resistant steel belt. pH of liquid: Between 3 and 13 for ambient temperatures. |
| Standard Configuration: | The Abanaki Grease Grabber is supplied with a hinged motor guard, raised by a gas spring when released. An additional guard covers the drive roll area. Other standard componentry includes a fixed wiper blade assembly, skimmer belt, tail pulley and ON/OFF push-button control with indicator lamp. The unit comes with assembly instructions. |
* Operating limits refer to liquid temperature. Consult the factory for advice on your particular operating conditions.
