Mighty Mini® Belt Oil Skimmer

$546.00 – $683.00

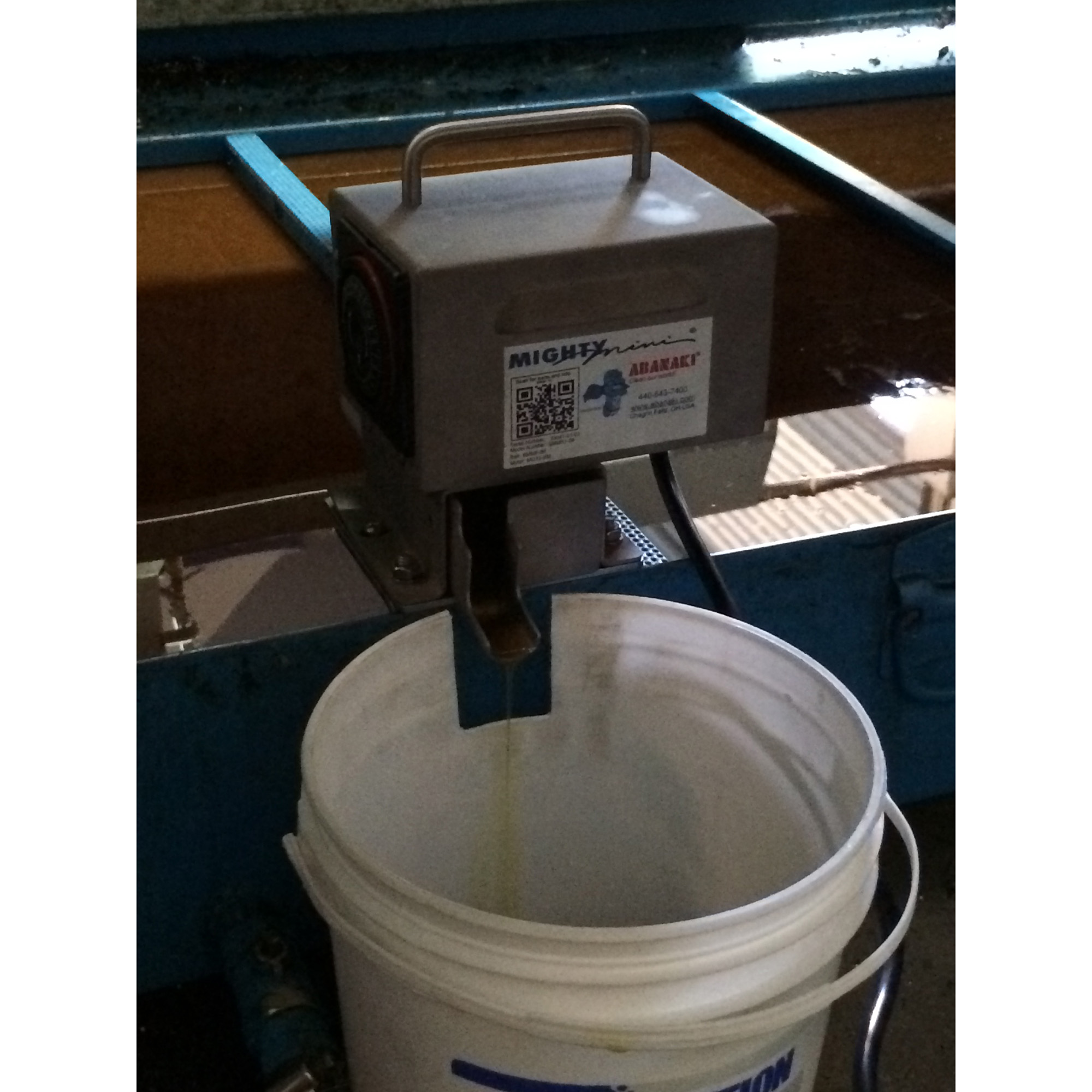

The stainless steel Mighty Mini is a compact belt skimmer designed for parts washers and machine tool coolant sumps. With its large discharge trough and small operating space, the Mighty Mini fits almost anywhere. The stainless steel construction resists rust and corrosion in harsh environments. Its pull out trough makes for easy cleaning and dual wipers make for extra efficiency. With its durable stainless steel construction, it is built to give long lasting performance.

SKU: N/A Categories: ,
  • Oil pickup rate of up to 1 g.p.h.
  • Spring loaded stabilizer bar.
  • Sealed shaft for longer motor life.
  • Removable trough for easy cleaning.
  • Fan cooled gear motor.
  • Integrated 24 hour timer.
  • Chip resistant, baked on, powder-coated base and housing.
  • 3-foot clear discharge hose and clamp; 8-foot grounded power cord w/plug.
  • Stainless steel construction.
Oil Removal Rate: Model SMMS1-06: 1 gph (3.8 lph) with 1 in. (25.4 mm) wide belt, 6 in. (153 mm) length
Model SMMS1-12: 1 gph (3.8 lph) with 1 in. (25.4 mm) wide belt, 12 in. (305 mm) length
Model SMMS1-18: 1 gph (3.8 lph) with 1 in. (25.4 mm) wide belt, 18 in. (458 mm) length
Model SMMS1-24: 1 gph (3.8 lph) with 1 in. (25.4 mm) wide belt, 24 in. (610 mm) length
Model SMMS2-06-06: 2 gph (5.7 lph) with 2 in. (50.8 mm) wide belt, 6 in. (153 mm) length
Model SMMS2-12: 2 gph (5.7 lph) with 2 in. (50.8 mm) wide belt, 12 in. (305 mm) length
Model SMMS2-18: 2 gph (5.7 lph) with 2 in. (50.8 mm) wide belt, 18 in. (458 mm) length
Model SMMS2-24: 2 gph (5.7 lph) with 2 in. (50.8 mm) wide belt, 24 in. (610 mm) length
Motor: Fractional hp TEFC, 115 or 220 VAC, single phase, 60 Hz gear motor, including 8 foot cord with electrical plug
Optional: 50 Hz motor is available
Belt Material: Specifically selected for your application
Wiper Material: Consult factory for the material appropriate for your application.
Mounting Method: Flat base mount with oil discharge through a 3/4 in. ID hose
Specification Notes:
  • The Mighty Mini SST is UPS shippable.
  • Consult factory for recommendations covering operating conditions not listed here.
