TubeTastic!™ Tube Oil Skimmer

$415.00

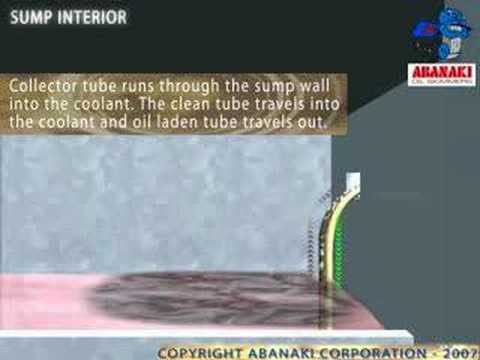

The Abanaki TubeTastic! oil skimmer can be used on machining centers with little or no access to the coolant sump from above. This unit can skim oil from chip conveyors or even totally enclosed machining centers. The TubeTastic! can be easily mounted on the side of virtually any machining center coolant sump. By use of an existing opening or by making a small access cutout, the collector tube runs through the surface of the coolant and collects the unwanted oils. The oil then flows out the discharge tube into any waste oil container for easy disposal.

SKU: N/A Categories: ,
  • Works in machining center sumps with little or no overhead space.
  • 110v continuous duty fan cooled motor.
  • Oil pickup rate of up to 1-1/2 g.p.h.
  • Standard tube lengths of 8, 12, 18 and 24 inches.
Oil Removal Rate: Model STUBE1-08: 1 gph (3.8 lph) with 3/8 in. (9 mm) dia. tube, 8 in. (153 mm) length
Model STUBE1-12: 1 gph (3.8 lph) with 3/8 in. (9 mm) dia. tube, 12 in. (305 mm) length
Model STUBE1-18: 1 gph (3.8 lph) with 3/8 in. (9 mm) dia. tube, 18 in. (458 mm) length
Model STUBE1-24: 1 gph (3.8 lph) with 3/8 in. (9 mm) dia. tube, 24 in. (610 mm) length
Model STUBE3-08: 3 gph (11 lph) with 7/16 in. (11 mm) dia. tube, 8 in. (153 mm) length
Model STUBE3-12: 3 gph (11 lph) with 7/16 in. (11 mm) dia. tube, 12 in. (305 mm) length
Model STUBE3-18: 3 gph (11 lph) with 7/16 in. (11 mm) dia. tube, 18 in. (458 mm) length
Model STUBE3-24: 3 gph (11 lph) with 7/16 in. (11 mm) dia. tube, 24 in. (610 mm) length
Motor: 110v, 1ph, 60Hz
Optional: Longer tube lengths are available upon request
Tube Material: Plastic – rated to 140 degrees F
Wiper Material: Rubber
Mounting Method: Side of machining center
