Multiple options exist for the collection of tramp oils. Two of the most common are oil skimmers and coalescers. Both offer unique advantages and disadvantages in certain applications.
Coalescers
Coalescers focus on collecting oil into larger droplets. Using a filter medium, the oil is gathered into one place and combines into a larger oil droplet, heightening the differing densities of oil and water. The oil then floats to the top of the coalescer, allowing removal by other means.
Coalescers have an advantage in specific coolant-related applications. Coalescers cover a bigger collection area than oil skimmers, speeding recovery and reducing need for moving the oil collection device.
Unlike oil skimmers, coalescers have no need for a collection container, preventing the potential for spillage. Abanaki’s Oil Boss can also be hung from a metallic surface, preventing the floor space footprint of other coalescers and oil skimmers.
Oil Skimmers

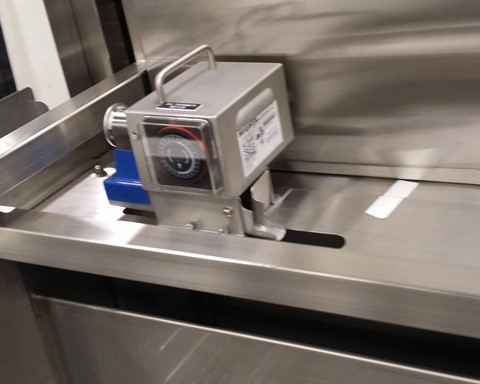

Oil skimmers focus on removing tramp oils using oleophilic belts. These belts attract the tramp oils and drag them up to a trough where they are scraped off, removing them from the water or coolant. Different belts have different specialties, such as steel belts being suited for LNAPLs and tramp oils.
Oil skimmers have an advantage in more varied conditions. Able to be used in high temperature applications where plastic coalescers might face pump failures, oil skimmers can withstand more extreme environments.
In addition, oil skimmers do not have to worry about pumps clogged by shavings or solid byproducts like coalescers might. Dirty oil can also go back into the sump in coalescers, while oil is completely removed by a oil skimmer. Oil skimmers also have more applications than coalescers, such as environmental remediation.
For more information about our line of coalescers and oil skimmers, contact us via phone at (440) 543-7400 or via e-mail at skimmers@abanaki.com.
Dirty coolant often generates smoke, that all too familiar “rotten egg” smell, and bacterial issues that can become a health hazard to shop workers. Disposing of oil laden coolant is expensive and the continual maintenance needed to remove it can cut into production time. Unfortunately, conventional methods can be messy and require oil receptacles, like a small can, to sit next to the machine. Who wants to worry about tripping over an oil can in the middle of a busy day?
Abanaki’s Oil Boss with “Constant Flow Facilitator”
Abanaki’s Oil Boss oil skimmer provides cost savings by removing unwanted tramp oil prolonging the life of the coolant. The patent-pending Oil Boss is designed for CNC machines offering passive tramp oil removal. This high-capacity-unit constantly removes and discharges unwanted oil from the coolant. The unit uses a specially-designed “Constant Flow Facilitator” automatically discharging the tramp oil as it is collects on the coolant. The “Constant Flow Facilitator” eliminates the need to remove oil manually.
Magni-Cling Technology Oil Skimmer
The revolutionary Oil Boss eliminated the mess and the clutter. The patent pending design allows the unit to cling on to the side, keeping the floor clean and clear. The Oil Boss comes equipped with Magni-Cling technology, which allows it to be hung from any metal surface in the shop. The magnetic backing allows for easy on/off portability, allowing you to clean all the sumps on site.
Oil Removing Process with Abanaki Oil Boss
Oil laden fluid is pumped up from the sump through the inlet valve of the Oil Boss. From there, the fluid passes through a media system, slowing the flow and allowing the oil to be filtered. The clean fluid passes through a second chamber and back to the sump below, leaving your tank with cleaner fluid in no time at all! The filtered oil can be easily discharged for clean and easy removal. In some instances, companies may be able to re-use the skimmed oil elsewhere or sell it for recycling, choosing to keep their part of the world cleaner. The Oil Boss is also reversible, which allows it to work within the layout of your shop without tubes and cords becoming tangled. The sleek design allows for simple, efficient, and clean oil removal.
Advantages of Abanaki Oil Boss
The Oil Boss is an innovative tool that keeps coolant free of oil and ultimately extends tool and coolant life. Additionally, it reduces expenses that would typically be used on maintenance and disposal.
