There is likely no larger industrial meeting place for oil and water than a steel mill. Because of the massive amount of water that is needed for process cooling and descaling, and the similar quantity of hydraulic, lubricating, and cooling oils that are required in steel production, the adage that oil and water do not mix is put to the test and proven every day.
Oil contamination in steel mills process water
It can take between 10,000-75,000 gallons of water to produce one ton of steel, depending on the amount of recycled water that is used. Reusing water whenever possible is crucial to maintaining costs, and to be able to reuse water in the majority of steel mill processes it needs to be free of contamination, namely oil.
Tramp oils commonly contaminate steel mill process water and this can lead to a variety of problems. Water purity is obviously affected which means that the effectiveness of this water in its role as a coolant or lubricant is reduced. Additionally, water that is contaminated with oil cannot be discharged into a facility’s wastewater system, as this can potentially cause a hazard to the environment. Finally, the presence of some oils in water can provide an ideal media for bacteria growth that can present unsafe working conditions for workers. All of these factors contribute to a mill not being able to recycle water, which means increased production costs.

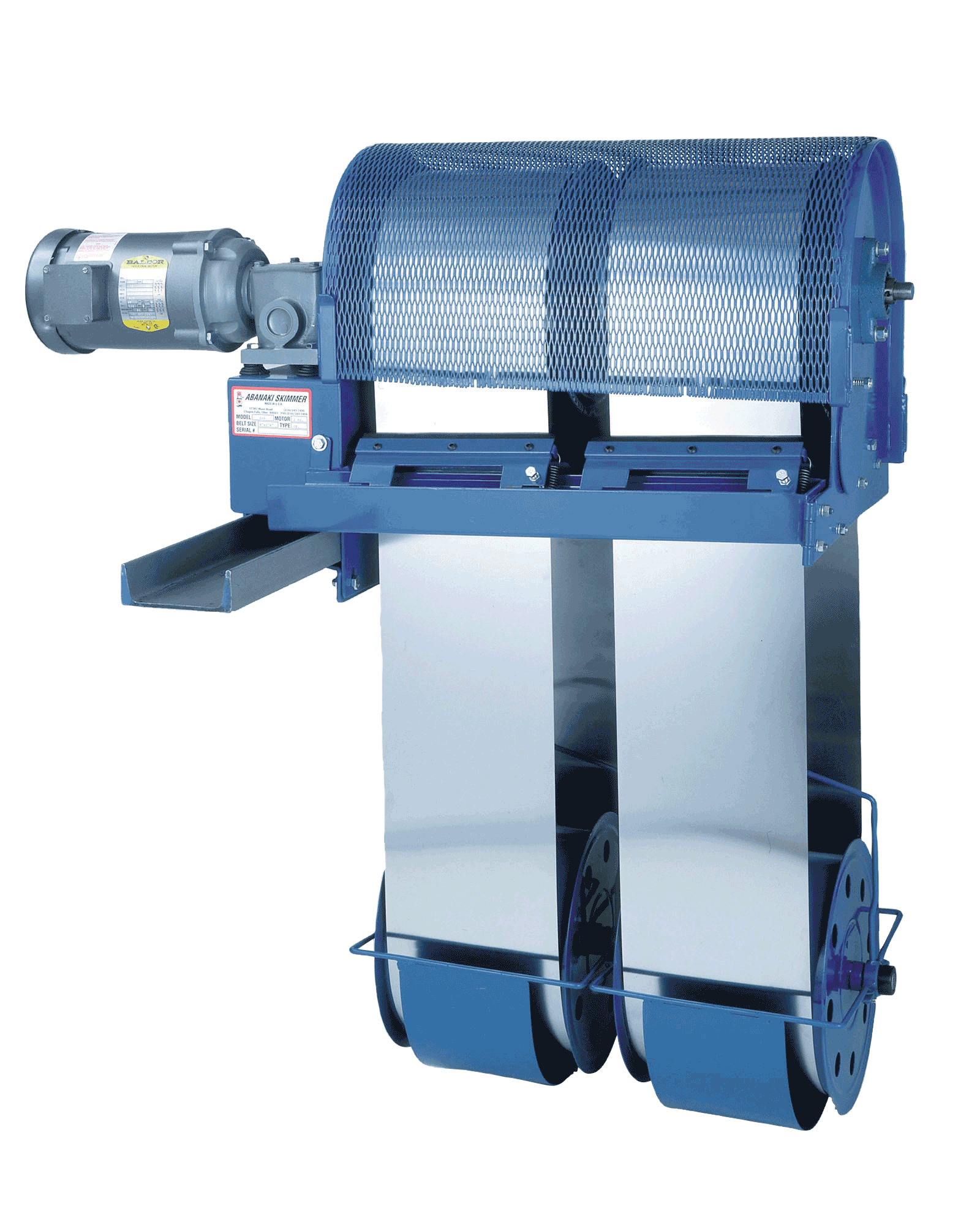

Abanaki Model 8 Oil Skimmer
What counter measures can be employed at a steel mill to limit or eliminate process water from becoming contaminated with oil? For one, the Abanaki Model 8 Belt Oil Skimmer is a dependable and effective means of removing oil from water and water-base solutions, such as those found in mills. Oil skimming makes use of the differences in specific gravity and surface tension between oil and water. These physical characteristics allow the belt skimmer to attract oil and other hydrocarbon liquids from the surface of the fluid.
Depending on the characteristics of the liquid, it is possible for the Model 8 to reduce oil content to less than five parts per million in water. It utilizes a continuous belt and wiper to remove up to 40 gallons of oil per hour from the fluid surface. The unit can be used as a pre-treatment before filtration, and in conjunction with coalescing systems. The versatility of the Model 8 allows it to be used in a wide array of applications in addition to steel mills, such as:
Abanaki Model 8 Oil Skimmer Specifications
The Model 8 can be used in tanks with depths as shallow as one foot, or as deep as 100 feet, and is built to last. With the proper configuration it can handle liquid temperatures up to 212°F, and the pH of the fluid can range from 3 to 13. The skimmer drive includes an oil filled gear reducer with bronze gears and ball bearings. The motor, reducer, and powder coated finish of the housing give the Model 8 exceptionally long life, even under the harshest conditions.
Selecting the right belt material is just as important as selecting the right skimmer. Choose the wrong belt and the skimmer will not work correctly. Things like pH, temperature, and oil type are crucial considerations.
Purpose of Oil Skimmer Belts
Selecting the right belt material is just as important as selecting the right skimmer. You might choose the right skimmer but the wrong belt type and the skimmer will not work correctly to solve your oil in water problem. It is crucial that things like pH, temperature, and oil type are considered when selecting a skimmer AND a belt type.
A belt is to a skimmer like wheels to a car’s chassis: although the latter is the most identifiable part, it needs the former to actually run. Just like tires, belts are not one size fits all. Just as there are snow tires, street tires, year-round tires, and more, so too are there a variety of belt materials. So, what purpose does each serve?
Different Kind of Oil Skimmer Belt Materials
There is a great deal of variance in applications where belt oil skimmers are present. Figuring out what would be the best belt material for your belt skimmer will depend on a few factors. For the most part, belts pick up the oil in the same fashion so the big difference is finding what will give you the longest operating life.
Steel Belts
Steel belts are the standard for many applications. Their durability, corrosion resistance, and strong oleophilic tendencies make the material effective in most scenarios. The lower price and ease of welding also reduce costs. The biggest caveat is their ineffectiveness when confronted with rust inhibitors in wash water. Steel belts are also ineffective in most applications where Petro-Xtractors are used.
Elastomer Belts
Elastomer belts are an alternative to steel belts that perform well in a multitude of situations. These belts can handle some of the harshest, most abrasive conditions a skimmer can be placed in and are fully compatible with the Petro-Xtractor. Still, steel belts will not stretch when exposed to UV rays over a long period of time.
Polymer (Poly) Belts
Polymer belts, commonly shortened to poly belts, are meant for higher temperatures and conditions where UV exposure and rust inhibitors are an issue. The textured nature of the poly belts causes more oil than usual to be picked up. This option tends to be pricier, but works like a charm in intense functions.
Fuzzy Belts
This video demonstrates how choosing the right belt material makes all of the difference. The Fuzzy belt does a better job at picking up the hydrocarbon than the standard belt on the right.
LFO belts, commonly referred to as Fuzzy belts, are a proprietary skimmer belt exclusive to Abanaki. This material specializes in the rapid removal of light, non-viscous hydrocarbons from water. If your problem is an oil like gasoline, the Fuzzy belt will remove it much more efficiently than any other belt in normal conditions. The Fuzzy belts are also extremely resistant to stretching.
XP Polymer (Poly) Belts
XP polymer belts, commonly shortened to XP poly belts, are very similar to poly belts. The key difference comes in its texture and temperature resistance. The XP poly belt is better able to handle high temperatures, maxing out at 180ºF. The belt also has a smooth texture rather than the ridged design of the standard poly belt. Although this change means the XP poly belt will not pick up oil as quickly, the belt will function better than the standard poly belt in conditions that would wear away the ridged design.
More information can be found in the Abanaki Oil Skimmer Factbook or Abanaki Belt Selection Guidebook. It is best to call (440-543-7400) with details of the application and ask your Abanaki representative what will work best with your belt skimmer.
