Tube oil skimmer can be used in wastewater applications that are shallow in depth. Plus, tube oil skimmer is a great fit where a belt skimmer is too big.
Full Sized Blog Element (Big Preview Pic)
Tube oil skimmer can be used in wastewater applications that are shallow in depth. Plus, tube oil skimmer is a great fit where a belt skimmer is too big.

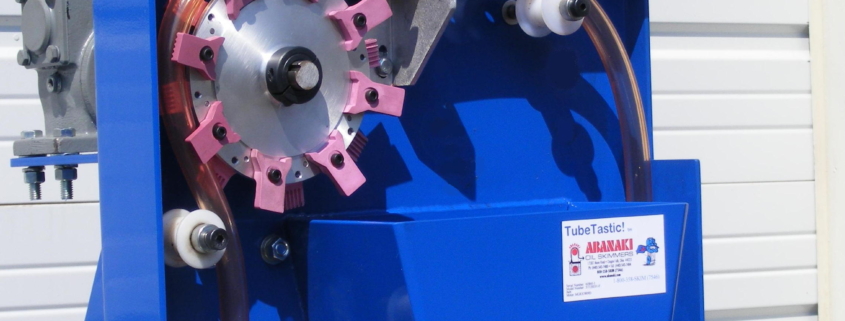

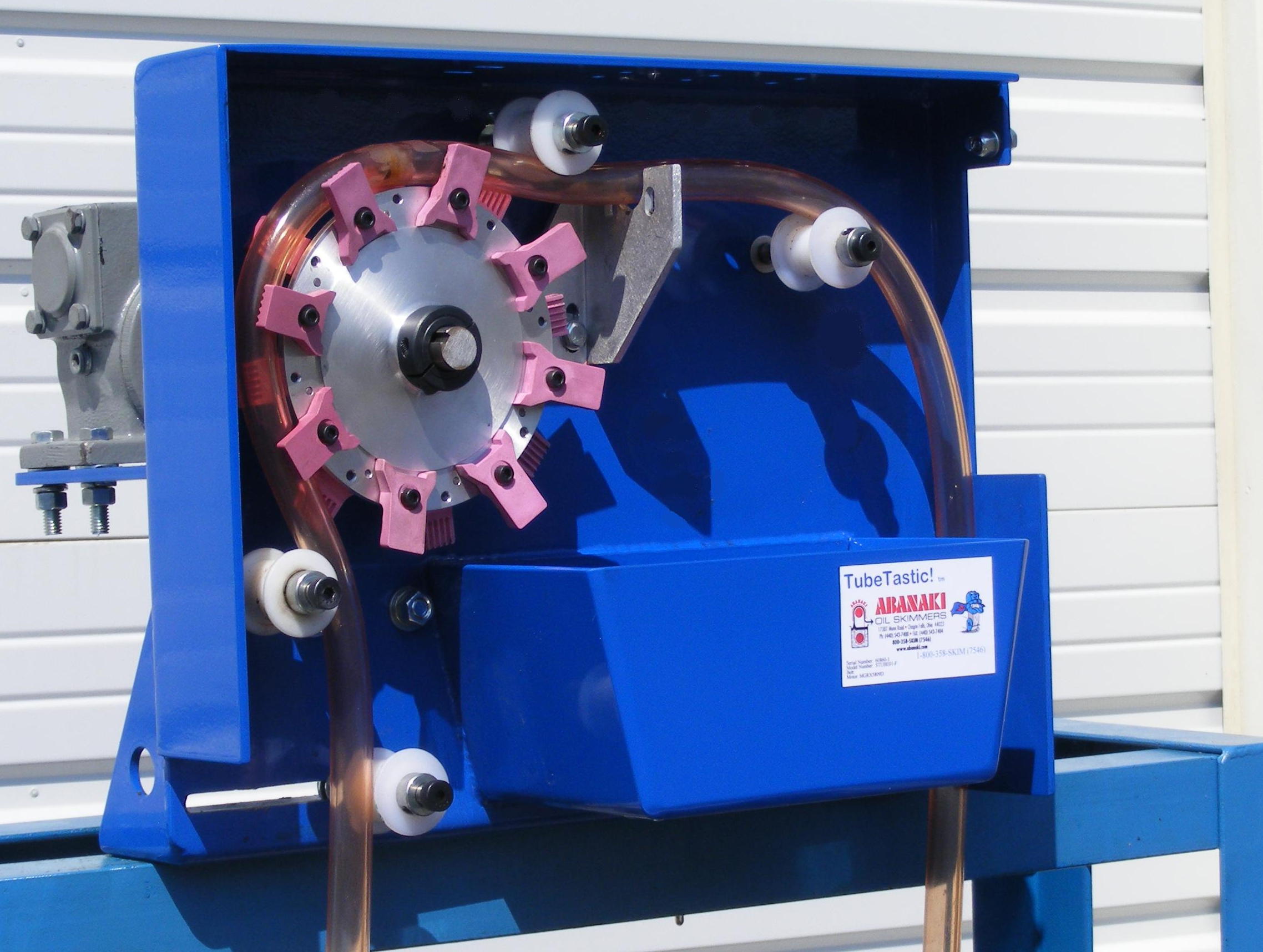

The Abanaki Oil Viper tube oil skimmer
The Abanaki Oil Viper tube oil skimmer is a surface oil skimmer that effectively removes floating oils by means of an oleophilic (oil attracting) ¾-inch diameter continuous looped tube. Due to the sleek design of the Oil Viper tube oil skimmer, it can skim in just inches of water compared to a belt skimmer which could need one to two feet of water to skim from.
The Oil Viper tube oil skimmer works off the same principle of the belt skimmer, the tube breaks the surface tension of the water, the oil is then collected and skimmed off by its unique wipe clean design. Two tube materials are available, the standard tube is great in a wide variety of applications; the high temperature tube is best suited for high temperature or caustic applications.
Oil Viper tube oil skimmer features:
- Compact design fits almost any tank or pit
- Explosion proof motors available
- Tubes with up to 100-foot reach
- Safety shut-off switch for safe operation
- Simple and effective drive design for lasting performance
- Unique wiping system for more effective oil skimming
Where to Use the Oil Viper?
The Oil Viper is a compact, versatile Abanaki skimmer. Its size and removal capacity make it suitable for most applications. From a mere shimmer on top of water to a heavy oil slick, the Oil Viper performs efficiently, removing up to 100 gallons of oil per hour.
Typical Applications:
- Wastewater sumps
- Coolant systems
- Food processing plants
- Parking lots, garages and service facilities
- Outdoor ponds, lakes and basins
- Underground tanks
- Ships bilges
- Aircraft service areas and tarmac runoff
- Truck, locomotive and other mobile equipment washing facilities
- Steel Manufacturing Plants
Rugged Construction for Harsh Conditions
The Oil Viper is designed to last for many years. With the proper configuration it can handle liquid temperatures up to 212°F, and the pH of the fluid can range from 3 to 13. The skimmer drive includes an oil filled gear reducer with bronze gears and ball bearings. The motor, gear reducer, and powder coated finish of the weldments give the Oil Viper exceptionally long life, even under the harshest conditions.
To learn more about oil skimmers, please contact our experts at 440-543-7400 or visit our website: www.abanaki.com
See the Oil Viper tube oil skimmer in action!
Oil skimmers are very simple pieces of equipment that can help you tackle a very serious wastewater issue. They are a low-cost and environmentally sound solution to waste oil recovery. They are by no means high-maintenance or difficult to use, but do require some routine work every now and then and a little tinkering here or there.
So how do you know when it is time to show your oil skimmer some TLC? Here are some things to look out for:
Are the wiper blades on your oil skimmer making smooth contact with the belt?
Somewhat of a common sense point but still worth mentioning. In order to successfully skim away the hydrocarbon, the wipers on the skimmer need to hit the belt perfectly. And this applies to any type or brand of skimmer. If the wiper blades are covered in goop, covered in debris, or if they are old and worn down, the skimmer will not be able to operate as intended. If you think something is amok with the way your oil skimmer is skimming, start with the wiper blades. They are an easy fix and new blades can make a world of a difference.
Is the belt riding away from the sides of the pulley?
Is the oil skimmer wobbly? Does the whole operation seem wonky? If things appear off, then they probably are. Double check to make sure that the oil skimmer is level in the tank, pit, sump, or well. If things still seem off, then see common sense point 1 about making sure the wipers are clean and not warped.
Has the belt seen better days?
Then replace it! Belts will typically last a long time, but as the great Robert Frost so poetically said, “Nothing gold can stay”. Belts will operate even past the point that they should. However, if you notice any fraying or tears, even if it is slight, it would be in your best interest if you replaced the belt. And going back to bullet point one, if your wipers are sketchy then they are going to mess your belt up.
All of our coolant skimmers are rugged, reliable and low maintenance. Removal capacities range from 1 to 200 gallons per hour. Browse the types of oil skimmers and oil skimming accessories in our website www.abanaki.com or contact our experts at 440-543-7400 to find the right solution for your application.
Unfamiliar with our Oil Skimming products? Go to the Skimmer Selection page to view the types of oil skimmers for every application.
Watch this video to see how to remove a higher amount of tramp oil.
