Belt oil skimmer is the easiest way to remove oil from coolant or water with low maintenance and no filters to change.
Full Sized Blog Element (Big Preview Pic)
Oil skimmers are very simple pieces of equipment that can help you tackle a very serious wastewater issue. They are a low-cost and environmentally sound solution to waste oil recovery. They are by no means high-maintenance or difficult to use, but do require some routine work every now and then and a little tinkering here or there.
So how do you know when it is time to show your oil skimmer some TLC? Here are some things to look out for:
Are the wiper blades on your oil skimmer making smooth contact with the belt?
Somewhat of a common sense point but still worth mentioning. In order to successfully skim away the hydrocarbon, the wipers on the skimmer need to hit the belt perfectly. And this applies to any type or brand of skimmer. If the wiper blades are covered in goop, covered in debris, or if they are old and worn down, the skimmer will not be able to operate as intended. If you think something is amok with the way your oil skimmer is skimming, start with the wiper blades. They are an easy fix and new blades can make a world of a difference.
Is the belt riding away from the sides of the pulley?
Is the oil skimmer wobbly? Does the whole operation seem wonky? If things appear off, then they probably are. Double check to make sure that the oil skimmer is level in the tank, pit, sump, or well. If things still seem off, then see common sense point 1 about making sure the wipers are clean and not warped.
Has the belt seen better days?
Then replace it! Belts will typically last a long time, but as the great Robert Frost so poetically said, “Nothing gold can stay”. Belts will operate even past the point that they should. However, if you notice any fraying or tears, even if it is slight, it would be in your best interest if you replaced the belt. And going back to bullet point one, if your wipers are sketchy then they are going to mess your belt up.
All of our coolant skimmers are rugged, reliable and low maintenance. Removal capacities range from 1 to 200 gallons per hour. Browse the types of oil skimmers and oil skimming accessories in our website www.abanaki.com or contact our experts at 440-543-7400 to find the right solution for your application.
Unfamiliar with our Oil Skimming products? Go to the Skimmer Selection page to view the types of oil skimmers for every application.
Watch this video to see how to remove a higher amount of tramp oil.

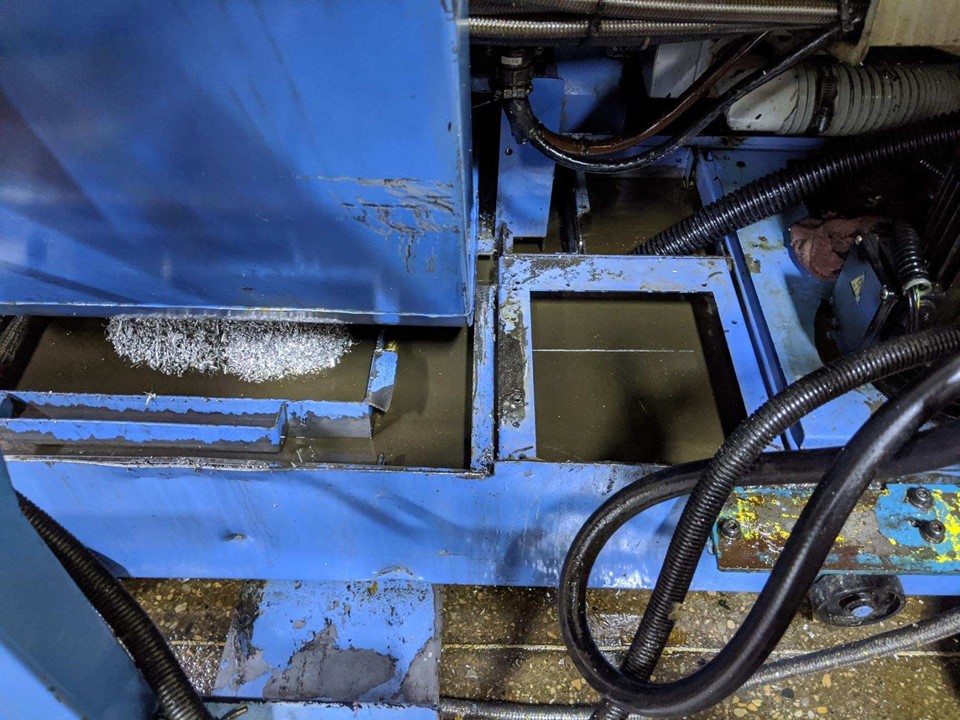

It is a common question asked every day by people in all fields of industry. Machine shops, steel mills, industrial manufacturers, and many others are faced with the problem of removing oils from coolants and wastewater on an everyday basis. They are faced with high disposal and maintenance costs. Some manufacturers are charged extreme amounts to have their contaminated water treated properly by their local water treatment facility.
Why Remove Oil from Coolant or Water?
Companies look for effective ways to remove oil from coolant or water to reduce costs and the liability of proper disposal. Another reason for removing the oil is a better work environment. Letting oil remain in the coolant tank allows anaerobic bacteria to grow. Anaerobic bacteria break down the components of coolant, causing it to need changing more frequently. Oil-laden coolant with a high anaerobic bacteria content has two other drawbacks as well. The first drawback is an unpleasant odor caused by the bacteria. The second drawback the smoke generated from the oil-laden coolant coming in contact with the operating cutting tool. One of the easiest ways to remove hydrocarbons from water or coolant is by using a belt oil skimmer. It is a low maintenance, easy to use tool for removing oil from water or coolant.
Why Belt Oil Skimmer?
Belt oil skimmers work because of the differences in specific gravity between oil and water. Water has a specific gravity of one. Most oils have a specific gravity of less than one. Because of these differences, oil floats to the top of the water where it can be removed. A belt oil skimmer uses oil oleophilic material, (usually made of stainless steel or plastic), in the form of a belt to break the surface tension of the water to attract and collect the floating oil.

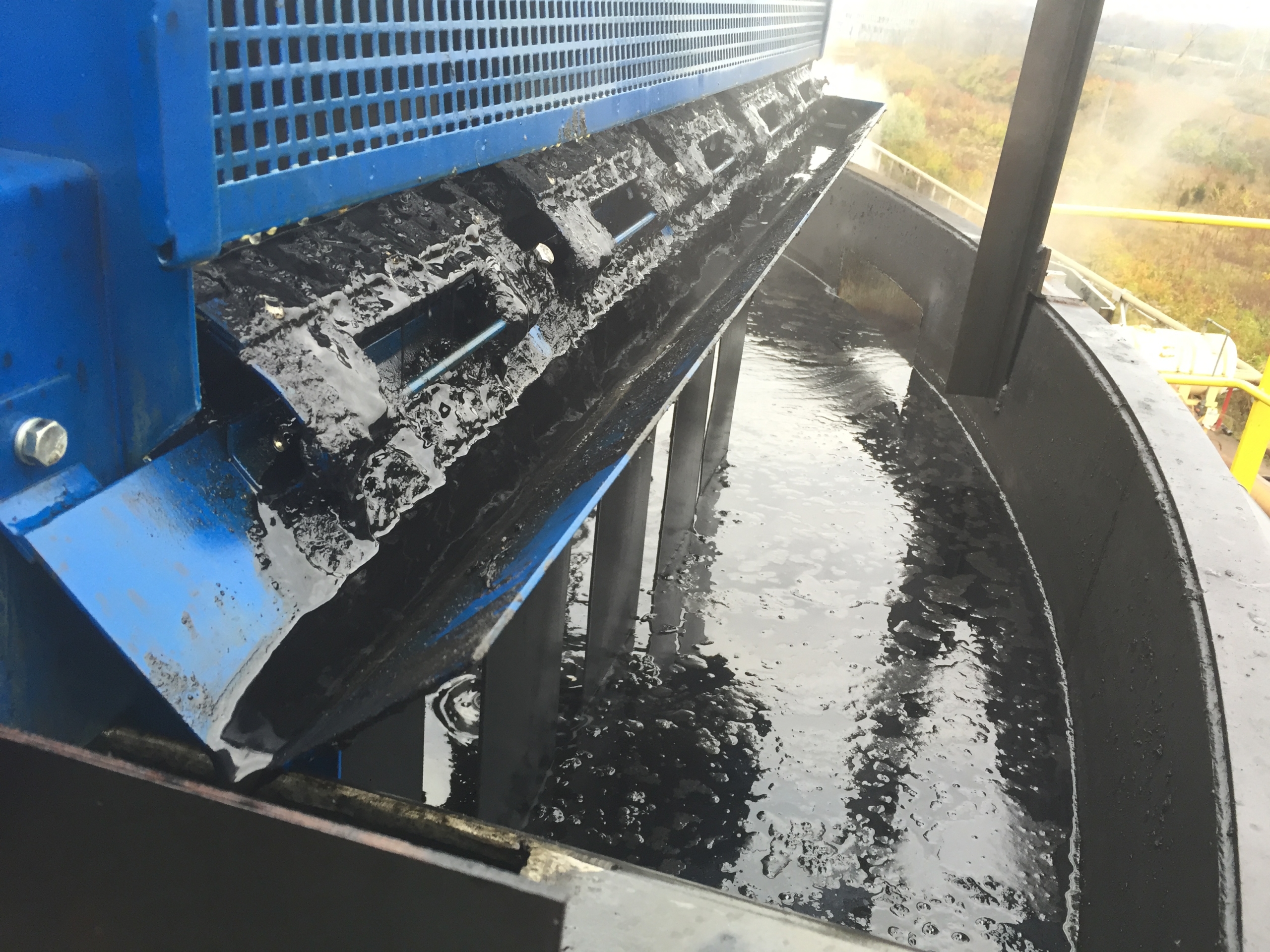

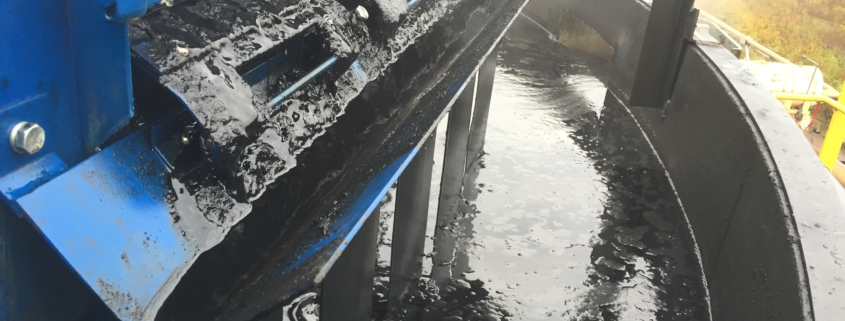

The belt passes through a set of wiper blades via a motorized head pulley where the oil is wiped off both sides of the belt. The oil then flows through the skimmer troughs and into a proper disposal container. Because the belt materials used do not attract water, very little coolant or water is picked up.
Advantages of Using Belt Oil Skimmer
Some of the advantages of using a belt oil skimmer over other methods to remove oil are the lower initial cost compared to coalescers and other filtration systems, low maintenance, no filters to change, and no mess involved as with absorbent booms or pads. With an oil skimmer, virtually the only required maintenance is replacing a belt and wiper blade set as needed.
Next, Abanaki oil skimmers require very little operating space, usually with no modification to the tank. Finally, our oil skimmers have pick-up rates of up to 200 gph with minimal water or coolant content. Other forms of oil removal cannot perform as well.
Wide Variety of Abanaki Belt Oil Skimmers
Abanaki Corporation manufactures a wide variety of oil skimmers to meet any size application. From a small coolant tank in a CNC lathe to a scale pit in a steel mill, Abanaki Corporation can supply a skimmer to do the job. We manufacture skimmers that can remove from 1 gallon per hour to 200 gallons per hour. We offer turnkey systems with a variety of motors, heat options, stands, and oil concentrators. Our skimmers are used on parts washers, in car washes, wells, steel mills, and any other industry where hydrocarbons need to be removed.
To learn more about oil skimmers, please contact our experts at 440-543-7400 or visit our website: www.abanaki.com
