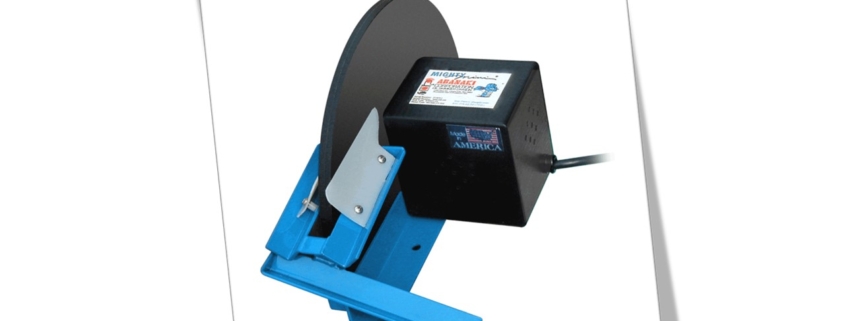

Disk oil skimmer provides an inexpensive way to remove unwanted tramp oils from CNC coolants and parts washers.
Disk Oil Skimmer Operation
Disk oil skimmers rotate a disk-shaped medium through the liquid. Oil is wiped off and discharged into a collection container in a manner similar to belt oil skimmers. When specifying disk diameter, it is important to consider reach, the portion of the disk that actually gets immersed. Less disk area in the fluid means less oil removed. Obviously, fluctuating fluid levels can be a real problem. Also, it is important to look at how much of the disk the wipers are actually wiping. If they wipe only 2 inches from the edge, then any reach into the fluid beyond 2 inches is wasted. As a result, removal capacities for disks can be relatively low.

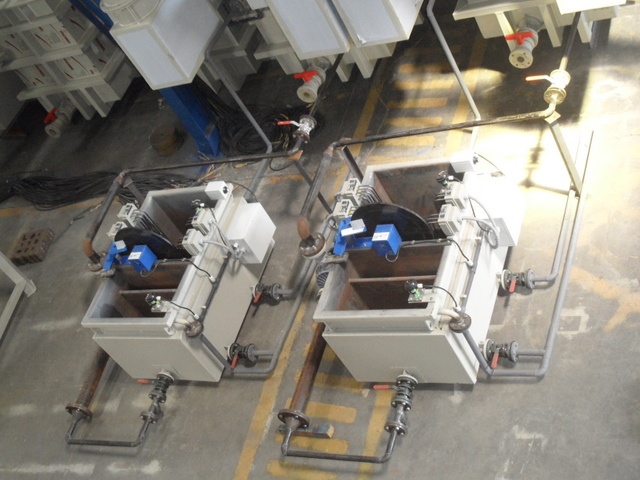

When properly selected and applied, disk oil skimmers are highly economical solutions for separating oil from water to allow its reuse or safe disposal.

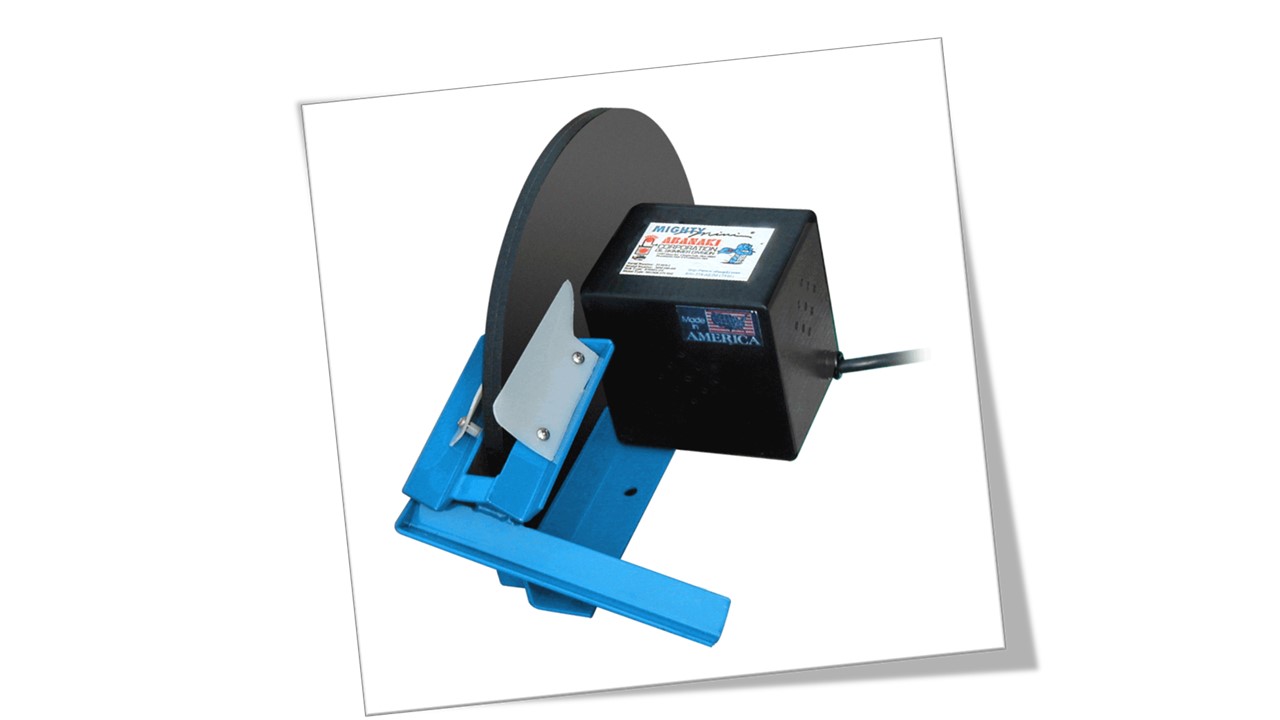

Find out more about Abanaki Mighty Disk™ oil skimmer that cuts cost and can be used almost anywhere.
Video: How To Tell If You Are Buying A High Quality Disk Oil Skimmer
To learn more about oil skimmers, please contact our experts at 440-543-7400 or visit our website: www.abanaki.com
You are just one step away from downloading Abanaki’s most detailed resource on our oil skimming equipment. Simply click at the button to get your ultimate guide now.
{{cta(‘7a3c62bb-85db-4bee-83fc-799ead070e4d’,’justifycenter’)}}
Tube oil skimmer is a surface tube oil skimmer that can effectively removes floating surface oils by means of an oleophilic (oil attracting) 3/4 inch diameter continuous looped tube. The tube extends out over the surface of the tank or pit and collects the free floating oils.
Abanaki tube oil skimmer (The Oil Viper) has a specially designed method for removing the oil from the tube. It has a unique wiper combination attached to the tube itself in addition to the ceramic wiper on the skimmer. The result is a virtually oil free tube as it leaves the surface oil skimmer for quicker oil removal. Removal rates can be as high as one hundred gallons per hour.
How Does a Tube Oil Skimmer Work?
The Oil Viper tube oil skimmer can be used in wastewater applications that are shallow in depth. The Oil Viper tube oil skimmer is a great fit where a belt skimmer is too big. Due to the sleek design of the Oil Viper tube oil skimmer it can skim in just inches of water compared to a belt skimmer which could need one to two feet of water to skim from.
The Oil Viper tube oil skimmer works off the same principle of the belt skimmer, the tube breaks the surface tension of the water, the oil is then collected and skimmed off by its unique wipe clean design. Two tube materials are available, the standard tube is great in a wide variety of applications; the high temperature tube is best suited for high temperature or caustic applications.
Large Tube Oil Skimmer
Large tube skimmers use a floating plastic hose that snakes out over the surface of the liquid and is then drawn back through the drive unit where oil is removed. This design requires a relatively large amount of fluid surface area for proper operation. Length considerations are the same as for belt skimmers; a typical tube diameter is 1 inch.
Small Tube Oil Skimmer
Mini tube skimmers are very similar to the larger tube units, but typically have either a 3/16-inch or a 5/16-inch diameter tube. The 5/16-inch diameter is preferable as it has enough stiffness to not drag on the housing and prematurely wipe off oil when drawn into the unit. Pickup rates vary from 1 quart/hour to 1.5 gph, depending on diameter and speed. These units can be used where space is limited. Units that have the motor mounted underneath reduce the amount of space required over the rim of the tank to nearly zero.
Video: Tube Oil Skimmer | Oil Viper | Abanaki
To learn more about Abanaki oil skimmers, please contact our experts at 440-543-7400 or visit our website: www.abanaki.com
You are just one step away from downloading the most dependable and effective Oil Viper Tube Oil Skimmer brochure. Simply click at the button to get your brochure now.
{{cta(‘01052a90-bda1-42a6-b52a-8d7e6eee9111’)}}
