Have you ever had your clean parts rejected from your customer? Parts that have been cleaned in your parts washers, yet they still have residual oils on them? This happened to one of my customers recently, and it’s not uncommon. Fortunately, there is a simple solution that will save you time, money, and embarrassment of having parts rejected.
Tote-It Belt Oil Skimmer
Abanaki Tote-It Belt Oil Skimmer will remove the oil that is floating on the surface of the parts washer and is being reintroduced onto the clean parts when they are removed from the parts washer. The Tote-It belt oil skimmer removes up to 12 gallons per hour of oil from water, and it is made to withstand the high temperatures and pH levels that can be associated with parts washers.
With its patented design, the Tote-It belt oil skimmer is a dependable and effective means of removing oil from water. The single assembly unit can be used in any application where 115 VAC, 60 Hz power is available.
Belt Oil Skimmer Specifications

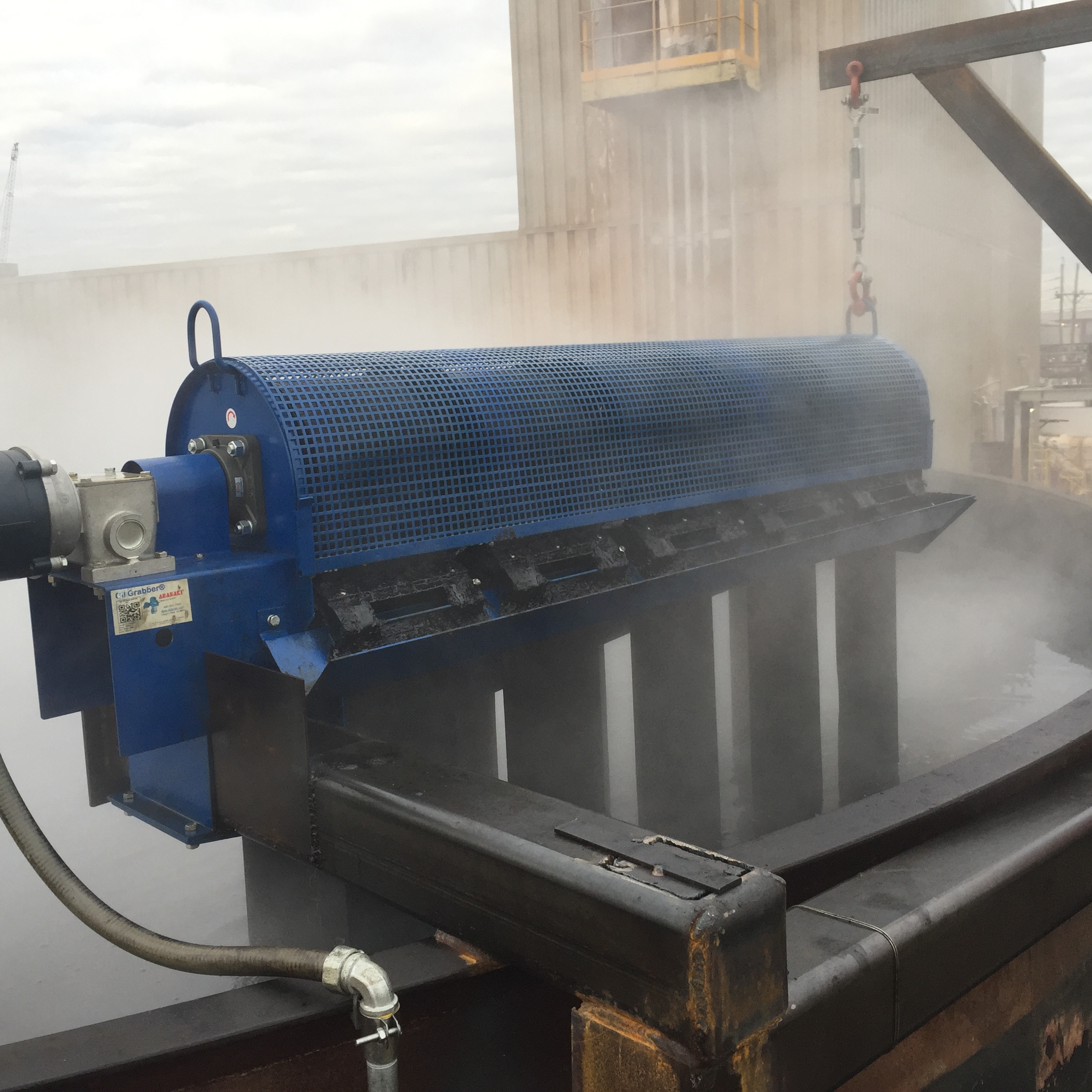

The Tote-It belt oil skimmer utilizes a continuous belt and wiper to remove up to 12 gallons of oil per hour from the fluid surface. The belt operates on a motor and pulley system attached to a stabilizer bar that is immersed in the contaminated liquid. After traveling over the head pulley, the belt passes through tandem wiper blades where oil is scraped off both sides of the belt, and discharged through a 1-1/4 in. ID hose. The tail pulley has flanges which allow it to roll freely on the inside of the belt without becoming dislodged. It does not need to be fastened to the tank.
Advantages of Belt Oil Skimmer
The Tote-It belt oil skimmer is especially well suited for parts washing and machining center applications. By removing surface oil from a wash tank, the parts will not be re-contaminated as they are withdrawn. Removing tramp oil from a coolant tank prevents excessive smoke and fumes due to oil burning during cutting operations. It also reduces bacteria growth in the tank, along with the resulting odor.
Video: How Does a Portable Oil Skimmer Work?
To learn more about oil skimmers, please contact our experts at 440-543-7400 or visit our website: www.abanaki.com
You are just one step away from downloading the most dependable and effective Tote-It Belt Oil Skimmer brochure. Simply click at the button to get your brochure now.
{{cta(‘77025e9a-88c6-48a9-9cea-5db6642921b9’)}}
Oil Skimmers are simple, dependable and effective tools for removing oil, grease and other hydrocarbons from water and can pay for themselves within a few months.
When properly selected and applied, oil skimmers are a highly economical solutions for separating oil from water to allow its reuse or safe disposal.
All oil skimmers rely on the fluid properties of specific gravity and surface tension although designs may vary. Most use a moving medium to remove floating oil from a liquid surface. Floating oil and grease cling to skimming media more readily than the water. This allows media (in the shape of a belt, disk, drum, etc.) to pass through the fluid surface to pick up floating oil and grease while leaving most of the water behind. The oily material is subsequently removed from the media with wiper blades or pinch rollers.
Grease Skimming
Grease skimming involves higher viscosity hydrocarbons. These skimmers must be operated at higher temperatures to keep the grease fluid. This may require heating elements in the reservoir and skimmer unit to keep the grease in a liquid state for easier pick-up and discharge. If the floating grease forms solid clumps or mats in the reservoir, a spray bar, aerator or other mechanical apparatus can be used to break up the grease and facilitate skimming.
Often, a skimmer by itself can achieve the required level of water purity. For more demanding situations, skimming is a cost-effective pretreatment before more complicated and costly treatments, such as coalescers, membrane filters and chemical processes are employed.
Video: Removing Grease and Oil from Water
To learn more about oil skimmers, please contact our experts at 440-543-7400 or visit our website: www.abanaki.com
You are just one step away from downloading Abanaki’s most detailed resource on our oil skimming equipment. Simply click at the button to get your ultimate guide now.
{{cta(‘7a3c62bb-85db-4bee-83fc-799ead070e4d’)}}
