Tube oil skimmer is a surface tube oil skimmer that can effectively removes floating surface oils by means of an oleophilic (oil attracting) 3/4 inch diameter continuous looped tube. The tube extends out over the surface of the tank or pit and collects the free floating oils.
Abanaki tube oil skimmer (The Oil Viper) has a specially designed method for removing the oil from the tube. It has a unique wiper combination attached to the tube itself in addition to the ceramic wiper on the skimmer. The result is a virtually oil free tube as it leaves the surface oil skimmer for quicker oil removal. Removal rates can be as high as one hundred gallons per hour.
How Does a Tube Oil Skimmer Work?
The Oil Viper tube oil skimmer can be used in wastewater applications that are shallow in depth. The Oil Viper tube oil skimmer is a great fit where a belt skimmer is too big. Due to the sleek design of the Oil Viper tube oil skimmer it can skim in just inches of water compared to a belt skimmer which could need one to two feet of water to skim from.
The Oil Viper tube oil skimmer works off the same principle of the belt skimmer, the tube breaks the surface tension of the water, the oil is then collected and skimmed off by its unique wipe clean design. Two tube materials are available, the standard tube is great in a wide variety of applications; the high temperature tube is best suited for high temperature or caustic applications.
Large Tube Oil Skimmer
Large tube skimmers use a floating plastic hose that snakes out over the surface of the liquid and is then drawn back through the drive unit where oil is removed. This design requires a relatively large amount of fluid surface area for proper operation. Length considerations are the same as for belt skimmers; a typical tube diameter is 1 inch.

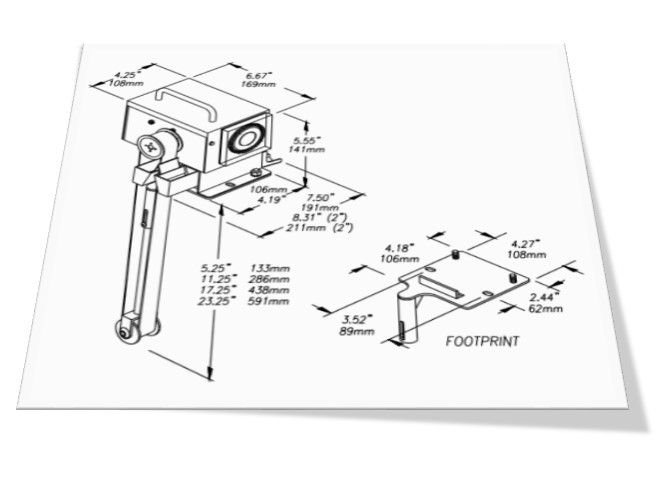

Small Tube Oil Skimmer
Mini tube skimmers are very similar to the larger tube units, but typically have either a 3/16-inch or a 5/16-inch diameter tube. The 5/16-inch diameter is preferable as it has enough stiffness to not drag on the housing and prematurely wipe off oil when drawn into the unit. Pickup rates vary from 1 quart/hour to 1.5 gph, depending on diameter and speed. These units can be used where space is limited. Units that have the motor mounted underneath reduce the amount of space required over the rim of the tank to nearly zero.
Video: Tube Oil Skimmer | Oil Viper | Abanaki
To learn more about Abanaki oil skimmers, please contact our experts at 440-543-7400 or visit our website: www.abanaki.com
Have you ever had your clean parts rejected from your customer? Parts that have been cleaned in your parts washers, yet they still have residual oils on them? This happened to one of my customers recently, and it’s not uncommon. Fortunately, there is a simple solution that will save you time, money, and embarrassment of having parts rejected.

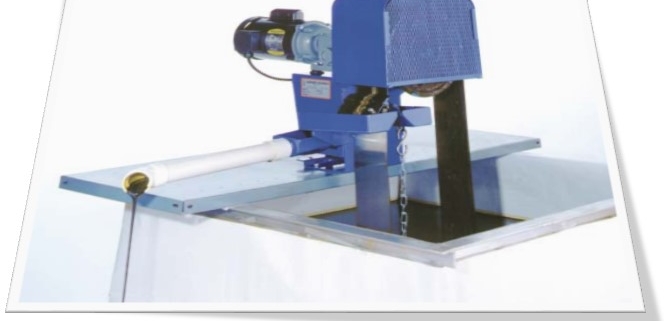

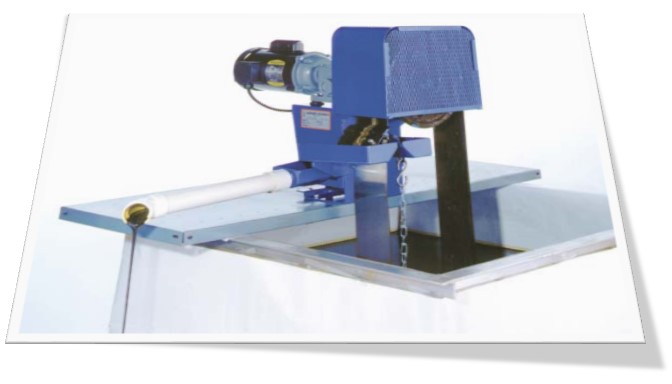

Tote-It Belt Oil Skimmer
Abanaki Tote-It Belt Oil Skimmer will remove the oil that is floating on the surface of the parts washer and is being reintroduced onto the clean parts when they are removed from the parts washer. The Tote-It belt oil skimmer removes up to 12 gallons per hour of oil from water, and it is made to withstand the high temperatures and pH levels that can be associated with parts washers.
With its patented design, the Tote-It belt oil skimmer is a dependable and effective means of removing oil from water. The single assembly unit can be used in any application where 115 VAC, 60 Hz power is available.
Belt Oil Skimmer Specifications
The Tote-It belt oil skimmer utilizes a continuous belt and wiper to remove up to 12 gallons of oil per hour from the fluid surface. The belt operates on a motor and pulley system attached to a stabilizer bar that is immersed in the contaminated liquid. After traveling over the head pulley, the belt passes through tandem wiper blades where oil is scraped off both sides of the belt, and discharged through a 1-1/4 in. ID hose. The tail pulley has flanges which allow it to roll freely on the inside of the belt without becoming dislodged. It does not need to be fastened to the tank.
Advantages of Belt Oil Skimmer
The Tote-It belt oil skimmer is especially well suited for parts washing and machining center applications. By removing surface oil from a wash tank, the parts will not be re-contaminated as they are withdrawn. Removing tramp oil from a coolant tank prevents excessive smoke and fumes due to oil burning during cutting operations. It also reduces bacteria growth in the tank, along with the resulting odor.
Video: How Does a Portable Oil Skimmer Work?
To learn more about oil skimmers, please contact our experts at 440-543-7400 or visit our website: www.abanaki.com
